TG552型 杆用组合密封
一、标准材料
双三角密封环：填充PTFE，T101；
O型圈：丁腈橡胶、三元乙丙或氟橡胶。
二、概述
TG552型活塞杆用组合密封由一个填充聚四氟乙烯材料的双三角密封环和一个GB1235 “O”形橡胶圈组合而成。适用于液压与气动往复运动活塞杆密封，起双向作用。推荐用于轻载液压元件中，如机床、阀门、物流设备等。
设计选用时可参考NOK公司SPNC系列标准。
三、特点
*耐磨损，耐挤出
*摩擦力小，无爬行
*紧凑的沟槽尺寸，结构简单
四、工况条件
|
直径范围mm |
速 度 m/s |
压 力MPa |
温 度 ℃ |
介 质 |
|
3~1500 |
≤5 |
0~60 |
-50~+250（取决于O形圈材质） |
液压油、气、水、乳化液等 |
五、订货示例
例：活塞杆直径d=Φ60mm
订货号 TG552--60

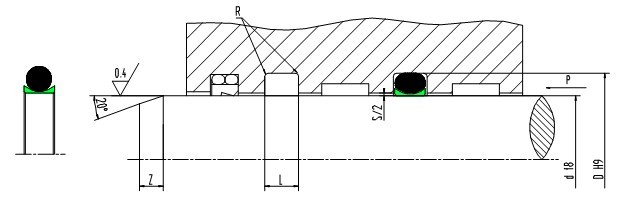

六、沟槽尺寸
|
杆 径
d f8 |
沟槽宽度
L+0.2 |
圆 角
R |
间 隙
S≤ |
倒 角
Z≥ |
|
液压用 |
气动和液压低摩擦用 |
|
3~10 |
d+3 |
2.5 |
0.3 |
0.2 |
3 |
|
10~22 |
d+4 |
3.2 |
0.4 |
0.3 |
4 |
|
22~50 |
d+6 |
4.7 |
0.6 |
0.4 |
5 |
|
48~150 |
d+10 |
7.5 |
0.8 |
0.4 |
6 |
|
150~1500 |
d+15 |
11.0 |
1.0 |
0.6 |
8 |
七、规格表
|
杆径
d f8 |
沟槽直径 D H9 |
沟槽宽度
L+0.2 |
订货号 |
|
杆径
d f8 |
沟槽直径DH9 |
沟槽宽度 L+0.2 |
订货号 |
|
液压用 |
气动和
液压低
摩擦用 |
液压用
|
气动和
液压低
摩擦用
|
|
3 |
6 |
6.5 |
2.5 |
TG552-3 |
90 |
100 |
100.6 |
7.5 |
TG552-90 |
|
4 |
7 |
7.5 |
2.5 |
TG552-4 |
95 |
105 |
105.6 |
7.5 |
TG552-95 |
|
6 |
9 |
9.5 |
2.5 |
TG552-6 |
100 |
110 |
110.6 |
7.5 |
TG552-100 |
|
8 |
11 |
11.5 |
2.5 |
TG552-8 |
105 |
115 |
115.6 |
7.5 |
TG552-105 |
|
10 |
13 |
13.5 |
2.5 |
TG552-10 |
110 |
120 |
120.6 |
7.5 |
TG552-110 |
|
10A |
14 |
14.6 |
3.2 |
TG552-10A |
125 |
135 |
135.6 |
7.5 |
TG552-125 |
|
12 |
16 |
16.6 |
3.2 |
TG552-12 |
130 |
140 |
140.6 |
7.5 |
TG552-130 |
|
14 |
18 |
18.6 |
3.2 |
TG552-14 |
135 |
145 |
145.6 |
7.5 |
TG552-135 |
|
15 |
19 |
19.6 |
3.2 |
TG552-15 |
140 |
150 |
150.6 |
7.5 |
TG552-140 |
|
16 |
20 |
20.6 |
3.2 |
TG552-16 |
145 |
155 |
155.6 |
7.5 |
TG552-145 |
|
18 |
22 |
22.6 |
3.2 |
TG552-18 |
150 |
160 |
160.6 |
7.5 |
TG552-150 |
|
20 |
24 |
24.6 |
3.2 |
TG552-20 |
150A |
165 |
165.6 |
11.0 |
TG552-150A |
|
22 |
26 |
26.6 |
3.2 |
TG552-22 |
155 |
170 |
170.6 |
11.0 |
TG552-155 |
|
22A |
28 |
28.6 |
4.7 |
TG552-22A |
160 |
175 |
175.6 |
11.0 |
TG552-160 |
|
24 |
30 |
30.6 |
4.7 |
TG552-24 |
170 |
185 |
185.6 |
11.0 |
TG552-170 |
|
25 |
31 |
31.6 |
4.7 |
TG552-25 |
180 |
195 |
195.6 |
11.0 |
TG552-180 |
|
28 |
34 |
34.6 |
4.7 |
TG552-28 |
190 |
205 |
205.6 |
11.0 |
TG552-190 |
|
30 |
36 |
36.6 |
4.7 |
TG552-30 |
200 |
215 |
215.6 |
11.0 |
TG552-200 |
|
32 |
38 |
38.6 |
4.7 |
TG552-32 |
210 |
225 |
225.6 |
11.0 |
TG552-210 |
|
35 |
41 |
41.6 |
4.7 |
TG552-35 |
220 |
235 |
235.6 |
11.0 |
TG552-220 |
|
36 |
42 |
42.6 |
4.7 |
TG552-36 |
230 |
245 |
245.6 |
11.0 |
TG552-230 |
|
38 |
44 |
44.6 |
4.7 |
TG552-38 |
240 |
255 |
255.6 |
11.0 |
TG552-240 |
|
40 |
46 |
46.6 |
4.7 |
TG552-40 |
250 |
265 |
265.6 |
11.0 |
TG552-250 |
|
42 |
48 |
48.6 |
4.7 |
TG552-42 |
260 |
275 |
275.6 |
11.0 |
TG552-260 |
|
45 |
51 |
51.6 |
4.7 |
TG552-45 |
270 |
285 |
285.6 |
11.0 |
TG552-270 |
|
48 |
54 |
54.6 |
4.7 |
TG552-48 |
280 |
295 |
295.6 |
11.0 |
TG552-280 |
|
50 |
56 |
56.6 |
4.7 |
TG552-50 |
290 |
305 |
305.6 |
11.0 |
TG552-290 |
|
48A |
58 |
58.6 |
7.5 |
TG552-48A |
300 |
315 |
315.6 |
11.0 |
TG552-300 |
|
50A |
60 |
60.6 |
7.5 |
TG552-50A |
310 |
325 |
325.6 |
11.0 |
TG552-310 |
|
52 |
62 |
62.6 |
7.5 |
TG552-52 |
320 |
335 |
335.6 |
11.0 |
TG552-320 |
|
55 |
65 |
65.6 |
7.5 |
TG552-55 |
330 |
345 |
345.6 |
11.0 |
TG552-330 |
|
56 |
66 |
66.6 |
7.5 |
TG552-56 |
340 |
355 |
355.6 |
11.0 |
TG552-340 |
|
60 |
70 |
70.6 |
7.5 |
TG552-60 |
350 |
365 |
365.6 |
11.0 |
TG552-350 |
|
63 |
73 |
73.6 |
7.5 |
TG552-63 |
360 |
375 |
375.6 |
11.0 |
TG552-360 |
|
65 |
75 |
75.6 |
7.5 |
TG552-65 |
370 |
385 |
385.6 |
11.0 |
TG552-370 |
|
70 |
80 |
80.6 |
7.5 |
TG552-70 |
380 |
395 |
395.6 |
11.0 |
TG552-380 |
|
75 |
85 |
85.6 |
7.5 |
TG552-75 |
385 |
400 |
400.6 |
11.0 |
TG552-385 |
|
80 |
90 |
90.6 |
7.5 |
TG552-80 |
390 |
405 |
405.6 |
11.0 |
TG552-390 |
|
85 |
95 |
95.6 |
7.5 |
TG552-85 |
400 |
415 |
415.6 |
11.0 |
TG552-400 |
|
